Baryte Processing Line

Baryte, or barite, is a mineral consisting of barium sulfate. The barite group consists of barite, celestine, anglesite and anhydrite. Baryte itself is generally white or colorless, and is the main source of barium. Barite and celestine form a solid solution.
Barite, barytes, or heavy spar, a white, yellow, blue, red, or colorless mineral. It is a sulfate of barium, BaSO4, found in nature as tabular crystals or in granular or massive form and has a high specific gravity. The mineral is widely distributed throughout the world. It often occurs in veins with lead and zinc minerals.

Contact us online now to find the nearest Baryte Processing Line Working site in your country, or Email us kefidsh@kefidchina.com .

Application IndustryApplication Industry

Barites are supplied in crude/lump form. Barites, after suitable grinding and pulverizing, have many uses. It is mainly used in oil-well drilling and it is estimated that 90% of the barites produced in the world is used only for drilling purposes. It is also found useful in the manufacture of white pigment or extender in pigments and barium chemicals, in the glass industry and as filler in rubber, leather, textile and paper goods.

Baryte Processing EquipmentBaryte Processing Equipment

1. Crushing
For barite quarry or mining, we can choose Hammer Crusher and Impact Crusher. The reduction ratio of these barite crushers are generally 10~35. Jaw barite crusher is used for coarse, medium and fine crushing.

2. Grinding
After first crushing by the barite crushers, you can install barite grinding machine which according to the final particle size requirement. For barite further grinding, there are Ball Mill, Raymond Mill, Coarse Powder Grinding Mill, etc.
To separate different sizes of barite final products, Vibrating Screen is usually playing an important role.

Vibrating Feeder Jaw Crusher Impact Crusher CS Cone Crusher
Vibrating Feeder Jaw Crusher Impact Crusher CS Cone Crusher
Vibrating Screen Ball Mill LM Vertical Grinding Mill MTW Series Trapezoid Mill
Vibrating Screen Ball Mill Vertical Grinding Mill MTW Trapezoid Mill

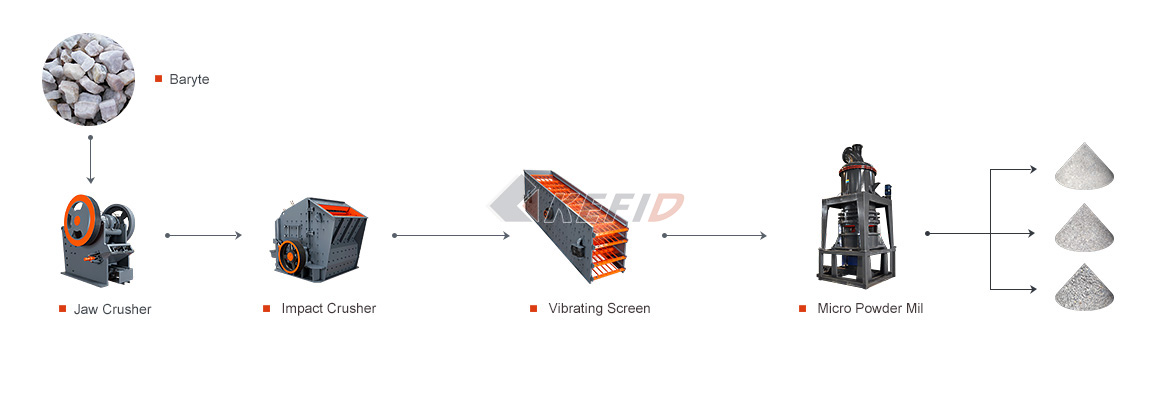

Baryte Processing LineBaryte Processing Line

1. First, the barite will be sent into the coarse crushing machine to processing the primary crushing.
2. Then the coarse barite will be fed into the impact crusher by the belt conveyor to processing for the secondary crushing.
3. Fine stone materials will be sent into the vibrating screen to make various stone specifications. And particle sizes which haven't satisfied the requirements will be resent for the repeated crushing.
