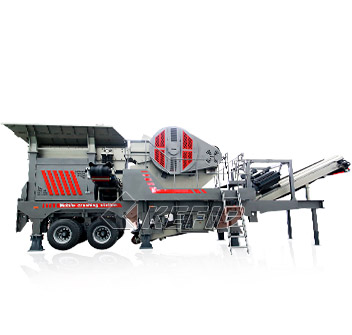

NK Series Mobile Crushing Station

Output size : Depend on materials
PRODUCTION CAPACITY : 110-600T/H

Application : Suitable for coarse crushing,medium fine crushing,screening,shaping sand making

Chat online Leave a message

  • INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATIONS

NK series mobile crushing station is a high-quality, high-capacity, high-performance tire mobile station,It’s developed by Kefid based on years of production, sales and service experience, combined with modern industrial technology to meet the diversified needs of customers. Its host device is developed and customized by mobile station, with reliable performance, high output, convenient maintenance and adjustment, and can provide customers with comprehensive, systematic and flexible modular solutions.

INTRODUCTION

NK series mobile crushing station is a high-quality, high-capacity, high-performance tire mobile station,It’s developed by Kefid based on years of production, sales and service experience, combined with modern industrial technology to meet the diversified needs of customers. Its host device is developed and customized by mobile station, with reliable performance, high output, convenient maintenance and adjustment, and can provide customers with comprehensive, systematic and flexible modular solutions.

FEATURES

1.Overall modular design,universal and strong interchangeability

When order is coming, the NK mobile station can be quickly assembled into the required mobile station model, reducing the production cycle and meeting the customer's fast delivery requirements.

2.The parts are completely bearing by machine,saving time and efforts.

Compared with the traditional tire mobile station, all parts of the NK series mobile station are completely bearing by machine, transporting no disassembled parts, eliminating the need for on-site installation

3.Fast transition without basic and belt conveyor design.

Reasonable adjustable fixed leg design enables non-basic installation; no external belt conveyor, no need for cranes and erecting belt conveyors on site, quick installation and commissioning, and the transition can be put into production with 24 hours.

4.Integrated intelligent automatic system for easy maintenance and adjustment.

The NK mobile station uses a new integrated intelligent automatic control system, which will make the maintenance adjustment of the crushing operation process more convenient and accurate.

TECHNICAL SPECIFICATIONS

表1

Coarse mobile stationNK100E mobile crusherNK1213C mobile crusher
Power138.5kW228.5 kW
Weight35T31T
Capacity150-350t/h150-300t/h
Feed hopper
Volume66
Width2500mm2500mm
Vibrating feeder
ModelFK0936 FK0936
Width960mm960mm
Length3600mm3600mm
Crusher
ModelPE3040 Jaw crusherCI5X1213 Impact crusher
Power110kW200kW
Depth760mm-
Width1000mm-
Maximum feed680mm550mm
Discharge port70-150>30mm
Discharge belt
Bandwidth1000mm1000mm
Discharge height3639mm3639mm

表2

Medium mobile crusherNK300H mobile crusher(No pre-screening)NK300H mobile crusher(With return material screening)NK1213 mobile crusher(No pre-screening)NK1213 mobile crusher(With return material screening)
Power283 kW323.5 kW231.5 kW272 kW
Weight34T42T29T37T
Capacity110-440t/h110-440t/h150-300 t/h150-300 t/h
Host
ModelHPT300 cone crusherHPT300 cone crusherCI5X1213 impact crusherCI5X1213 impact crusher
Maximum feed220mm220mm300mm300mm
Power220kW220kW200 kW200 kW
Vibrating screen
Model-SKX1536-SKX1536
Power-15kW-15kW
Rotating speed-1000r/min-1000r/min
Vibration intensity-4.5G-4.5G
Screen size (width * length)-1500X3600mm-1500X3600mm
Belt conveyor
Feed belt conveyor bandwidth1000mm1000mm1000mm1000mm
Host discharge belt conveyor bandwidth1000mm1000mm1000mm1000mm
Screening transfer bandwidth-500mm-500mm
Return bandwidth-500mm-500mm
Screening discharge bandwidth-1200mm-1200mm
Finished strip discharge height3334mm3124mm3334mm3124mm

表3: Screening mobile station

SKX1860 vibrating screen(2/3)
Power72/79.5 kW
Weight27/31T
Capacity70-600t/h
Vibrating screen
Power22kW
Screen size (width * length)1800X6000mm
Rotating speed1000r/min
Vibration intensity4.5G
Belt conveyor
Feed belt conveyor width1000mm
Side belt conveyor width650mm
Under the belt conveyor width1200mm

Trips:The processing capacity listed in the table refers to the crushing of medium-strength materials. The processing capacity is affected by many factors, such as the nature of the material, the composition of the particle size, the working conditions of the feed discharge, the water content, the loose density and the fragmentation and so on, so the data in the table will change depending on the specific situation.
