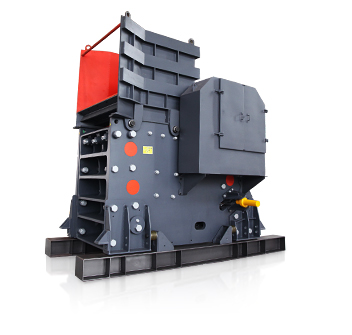

C6X Series Jaw Crusher

PRODUCTION CAPACITY : 160-1500t/h

APPLICATIONS : The C6X Series Jaw Crushers is mainly used in many different industrial fields such as metallurgy nonmetal ores chemical cement construction refractory material and ceramics etc.

Chat online Leave a message

  • INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATIONS

Our company is the leading enterprise for producing rock and mineral processing equipment in the word. We have installed over ten thousands pieces (sets) of crushing equipment all over the world since the end of 20 century. Nowadays the C6X Series Jaw Crushers has indisputably become the most popular jaw crusher in the world. This equipment adopts the most advanced crushing technology and manufacturing level so that it can efficiently crush the hard and strong abrasion materials.

INTRODUCTION

Our company is the leading enterprise for producing rock and mineral processing equipment in the word. We have installed over ten thousands pieces (sets) of crushing equipment all over the world since the end of 20 century. Nowadays the C6X Series Jaw Crushers has indisputably become the most popular jaw crusher in the world. This equipment adopts the most advanced crushing technology and manufacturing level so that it can efficiently crush the hard and strong abrasion materials.

FEATURES

1、The rack adopts design of separated side wall front and rear wall which greatly increase service life of the crusher.

2、Optimize the crushing cavity structure and movement locus of movable jaw thus it would achieve higher crushing efficiency under the same energy consumption.

3、Double-wedges adjusting device makes the adjustment of discharge opening easier more -efficient and safer.

4、It adopts elastic limit block and rubber shock-mitigating device to replace the rigid anchor connection which improve the service life of the crusher.

5、Integrated motor seat design. Motor seat is fixed installed on the crusher and it reduces the installation space and makes the power transmission more stable at the same time.



TECHNICAL SPECIFICATIONS
Model C6X80 C6X100 C6X110 C6X125 C6X145 C6X160 C6X200
Feed opening length(mm) 800 1000 1100 1250 1450 1600 2000
Feed opening width(mm) 520 760 850 950 1100 1200 1500
Motor power(Kw) 75 110 160 160 200 250 400
Rotating speed(rpm) 350 260 230 220 220 220 200
Output size(mm) Tight-side discharging opening (mm) t/h t/h t/h t/h t/h t/h t/h
0-90 60 80-110
0-105 70 100-135 130-180
0-120 80 110-150 150-200 160-240
0-135 90 130-175 170-220 180-260
0-150 100 145-190 190-250 200-280 240-340
0-185 125 180-245 235-310 250-360 280-410 320-470
0-225 150 225-290 280-360 300-430 340-480 370-550 420-610
0-260 175   330-420 340-490 370-550 430-630 470-700 620-890
0-300 200     380-550 420-620 480-710 530-790 690-1000
0-340 225       470-690 540-790 590-880 770-1100
0-375 250       520-760 600-870 650-970 850-1200
0-410 275         660-950 700-1060 930-1300
0-450 300           750-1100 1000-1500

Note: The theoretical capacity mentioned above would change with different parameter and raw material.
