Four in one mobile crusher in Kenya

Raw material :  granite
suggested input size :  350mm
Output size :  0-20mm
Capacity :  30-35TPH
Plant type :  mobile crushing line
Chat online Leave a Message
Crushing process
1 The material will be fed into Jaw crusher PE400x600 for primary crushing through vibrating feeder ZSW960x3500. Vibrating feeder is used to feed material to jaw crusher evenly and continuously.
2 the material after crushed by jaw crusher will be conveyed to vibrating screen 3YZS1237 for screening: the required size 0--20mm will be discharged and conveyed out as the final products. Meanwhile, the over sized material will be fed into cone crusher PYZ900 for secondary crushing.
3 after secondary crushing from cone crusher PYZ900, the material will be conveyed again to 3YZS1237 for screening: the required size will be discharged and over sized material will return back to cone crusher again for re-crushing, forming a circle until all the final materials reach the required size.

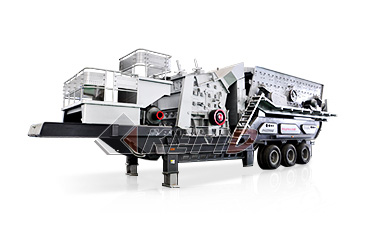

The four in one mobile crushing line is specially designed by our engineer, which integrated the vibrating feeder, coarse crusher, fine crusher, vibrating screen and belt conveyor together in only one trailer, decrease the production cost to a great extent.
Kefid of this set of equipment to meet the demand of our production capacity and product size also exceeded our expectations, put into production, equipment operation is very stable, and more optimization product series varieties classification, configuration scheme more rich, we are very pleased with the device!
