200TPH Granite Stationary Crushing Plant in Togo

Raw material :  granite
Max input size :  750mm
Capacity :  200t/h
Final product size :  0-4-6-10-14mm;0-5-15-25mm; 0-31.5mm; 0-40mm
Location :  Togo
Main Equipment :  LC4000X4000 hopper, ZSW 1300 x4900 vibrating feeder, PE900x1200 jaw crusher , LC4000X4000 surge hopper, HPT300/C hydraulic cone crusher, GZG110-4 vibrating feeder , and 4YZS2460 vibrating screen.
Chat online Leave a Message
Process Description
The raw granite was fed into the PE900x1200 from hopper by vibrating feeder ZSW1300X4900 for primary crushing. The output size about 160mm are transported to the cone crusher HPT300C, after crushed by the HPT300/C, the outputs are transported to the vibrating screen 4YZS2460 for screening, the size 0-6-10-14-31.5mm will be screened out as final products, the size bigger than 31.5mm will be transported back to cone crusher HPT300C for re-crushing. It is a closed circle crushing line; the granite will be crushed until all the output size below 31.5mm.

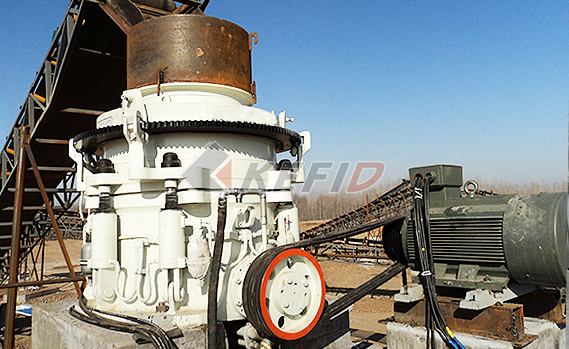

Kefid company technical personnel to the scene personally to the exploration of our site, according to the characteristics of granite configuration of the production line for us. HPT300 hydraulic cone break on the principle of laminating crushing, the size and the shape of the finished product standard grading is reasonable, and stable operation, low efficiency, greatly satisfy the our demand for aggregate.
